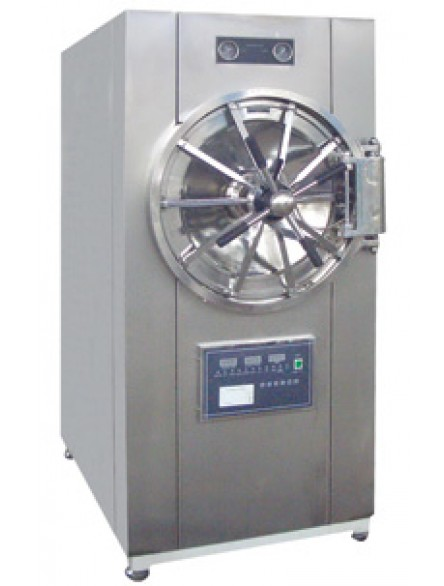

Autoclave Horizontal High Speed

Product Description

ESTEEM HORIIZONTAL AUTOCLAVE HIIGH SPEED ((ESTA--1107A))::--

We are manufacturers of triple walled horizontal autoclave India since 1984. Our horizontal autoclave are widely used for

day to day mass scale sterilization procedures and in various bulk laboratory applications, where dryness of the sterilized

medium is of paramount importance, given the fact that semi dry sterilized media is prone to various micro-bacterial and

viral infections. We specialize in both standard and customized models, specifically designed to meet the challenging

demands of various scientists for individual and specialized research applications. Over a short period of time Esteem

brand have been established as reliable exporters of horizontal autoclave in India, catering to the vast markets in South

East Asia, Middle East, Africa and Europe. Apart from that we are supplying our autoclave in India , catering to a variety

of customers ranging from Defence Installations, Research Laboratories, Educational Institutes and various R and D

laboratories of leading national and multinational companies.

SALIENT FEATURES OF OUR TRIPLE HORIZONTAL AUTOCLAVE (DRY)

Steam Stock Provision

Versatile usage

Stainless steel construction

Ergonomic Design

Energy Efficient

Double Safety Radial Locking Arrangement

Double Safety Valve Protection

Hydraulic Testing Upto 2.5 times the working pressure

Calibration And Protocol Documentation

CONTRUCTION

Our horizontal cylindrical autoclave are triple walled units. Outer body of our autoclave is constructed out of thick gauge

stainless steel sheet of SS-304 grade. The inner chamber is also made of heavy gauge stainless steel sheet of SS-316

grade. The middle wall is also constructed from the strong and sturdy stainless steel sheet of SS-316 grade s stainless

steel sheet. These are steam stocking models connected with a three way valve to control the sterilization cycle inside

the autoclave. Our autoclaves are insulated by generous mineral glass ass wool insulation. The strong lid constructed

out of thick stainless steel plate has a double safety radial locking arrangement, which ensures an easy and smooth

opening and closing operation for all our autoclaves. The steam generator of the autoclave is also constructed from

stainless steel sheet of grade SS-304.

Our horizontal autoclaves are ideally suited for hospitals and research labs where safety is the first priority of the users,

since it is equipped with a double safety steam release valve. At the same time we test all our autoclaves for up to 2.5

times the standard working pressure to ensure maximum safety and protection from any unfortunate incident. All our

horizontal autoclaves are supplied complete with pressure gauge, pressure release valve automatic pressure control

switch, vacuum breaker and steam trap as a standard feature. The unit is mounted on a tube stand constructed of high

grade steel, which is duly pre treated with primers for rust proofing and painted with stove enamel.

HEATING

The heating process in our triple walled Horizontal autoclave is done through specially designed water heaters of suitable

wattage to ensure optimum sterilization time in every sterilization cycle.

WORKING TEMPERATURE

As per the international standards and guidelines our triple walled Horizontal autoclaves have a working temperature of

121oC. ,however for specific requirements our autoclaves can be upgraded to be used for up to 134 c.

WORKING PRESSURE

Working pressure for our standard dry sterilization model Horizontal autoclave is 15 psi, however this can be upgraded to

be used for higher pressures of up to 30 psi..

PRESSURE RANGE

The normal pressure range of our autoclave is 5 psi to 20 psi

PRESSURE CONTROL

The pressure inside our Horizontal autoclave is controlled through a semi automatic electro mechanical device called

piezostat, which controls the pressure inside the chamber and cuts of the current from the heater whenever the pressure

exceeds the set pressure value of the autoclave, thus making it very safe and energy efficient.

TECHNICAL FEATURES OF DELUXE HORIZONTAL AUTOCLAVE

Hi-tech radial lock locking mechanism for ultimate ease of operation and safety.

Steam Release valve of Stainless Steel ensuring a long life of the equipment.

Huger grade spring loaded safety valve of brass, duly chrome plated.

Water Indication Gauge with stainless steel enclosure.

High accuracy and reliable pressure gauge.

Multiple operating valves for the control of the sterilization cycle.

Accidental Vacuum Break Device: Ensuring vacuum break due to power failure or any other usage.

Water Level Cut Off Device.

CUT Hammer contractor for long trouble free usage.

Specially designed ISI marked stainless steel heaters.

Plug screen to prevent line choking due to sediment discharge.

Highly accurate temperature and pressure gauges for boiler chamber and jacket

However we are fully capable to cater to the demand of any customized size for any special application.

UPGRADES (STANDARD)

LOW WATER PROTECTION DEVICE

This automatic system can be incorporated with our Horizontal autoclaves to give protection against the low water

scenario under prolonged usages.

TIMER WITH ALARM SYSTEM

This semi automatic device can be incorporated with the standard models of our Horizontal autoclave which helps the

user to set the sterilization time of the system and do other tasks without bothering to monitor the sterilization cycle. This

device cut off the current from the main system when the set value for a given sterilization cycle is attained and gives a

loud audio alarm.

DIGITAL TEMPER INDICATOR

A solid state digital temperature controller cum indicator can be incorporated with our basic Horizontal autoclave models

for ease of monitoring the temperature of the autoclave from a distance through its large LED display, which is visible

from quite a distance.

OTHER ACCESSORIES:

PROGRAMMABLE TEMPERATURE CONTROLLER

A programmable micro processor based temperature controller cum indicator can be incorporated in our basic Horizontal

autoclave models to pre program the sterilization cycle temperature with high amount of accuracy and reliability.

CHART RECORDER

This a semi automatic self contained easy to use recording device, which permanently records the temperature is any

given sterilization cycle of our vertical autoclave on a graph sheet., with the help of a bimetallic strip transducer chip

incorporated in the unit.
