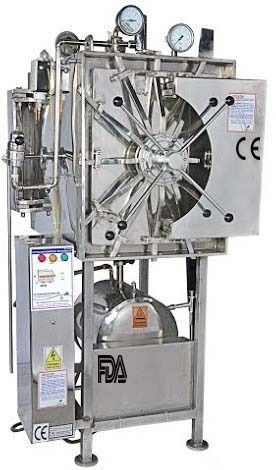

Horizontal Autoclave

Product Description

ESTEEM HORIZONTAL RACTANGULAR AUTOCLAVE:-

The sterilizer is based on the principle that microbiological action of saturated steam at elevated temp is rapid and thorough. All contact parts is made of SS 316 with food grade joints silicon gasket load in trolley and with door safety interlocking on both door under pressure and jacket is provided for storage of steam and boiler is electric operated heaters and digital temperature controlled and display pressure. All models work on downward displacement of air principle which is most economical method of obtaining for all types of bulk sterilization which are commonly needed in Medical, Agricultural and Pharmaceutical institute Suitable for sterilizing hospital dressings, linen, rubber plastic goods, surgical instruments, glasswares and utensils etc. Construction Robust and rugged all weld construction which is leak proof unlike riveted construction. Inner chamber is made of thick plate of Mild Steel of non magnetic stainless steel of 304/316 quality and jacket is made out of SS 304. All the sterilizers are hydraulically tested to withstand 2.5 times the working pressure. The steam jacket is lined on the outer side with asbestos sheet or glass wool which prevents heat losses due to radiation and is covered by strong rolled steel sheet duly painted. Boiler Made of thick stainless steel plate suitably located under the sterilizer.

The clutch mechanism automatically disengages the threads of the radial locking system for precluding any eventuality of accident when the chamber is under pressure. A heat resistant Neoprene Rubber gasket ensure steam tight fitting. Pressure Control Electrically operated Dan Foss

(Pressure Control Device) is incorporated in all electrically operated sterilizers. It economizes power consumption and limits the use of release valve which would frequently blow steam into the room. It cuts off the power supply to heaters when the set pressure is achieved and re-energizes heaters when pressure falls down. Sterilization Complete sterilizing cycle is controlled from one point with the help of Multi port valve fitted at front top. Two speeds of exhaust are available for evacuating. The Chamber Two separate valves provided for evacuating air and steam from inner chamber and jacket as and when desired. A steam trap is fitted in the chamber discharge line to eliminate the condensate automatically. Switch Box Houses the Pressure controls switch Main switch, Pilot lamps, relays etc. and mounted on the stand of the sterilizer for easy operation.

Size if Inner Chamber:-

450 x 450 x 900mm

450 x 600 x 900mm

600 x 600 x 900mm

600 x 600 x 1200mm

600 x 900 x 1500mm

900 x 1050 x 2100mm

1050 x 1200 x 2100mm

Extra for PLC Controller

OTHER FEATURES

TRIPLE SAFETY:-

The sterilizer is provided with triple safety.

a) By a pressure control switch which automatically limits the pressure to the required set valve.

b) Two spring loaded safety valves one each at chamber and boiler level.

c) A dead weight safety valve at chamber level.

PLUG SCREEN:-

Prevents the discharge line from choking. The plug is easily removable for routing cleaning.

A powerful Ejector (for drying sterilized linen) circulates air through the chamber.

The circulating air passes through a corrosion resistant metal wool filter.

A Dial thermometer is provided to show the chamber temperature.

AUTOMATIC VACUUM BREAKER is provided to break vacuum case of vacuum formation due to steam condensation.

OPERATING TEMPERATURE AND PRESSURE:-

Sterilizing Pressure: 1.2 to 1.5 kg/Sq. cm

Door of Stainless steel

Additional Tray/Shelves

Carriage & Trolley

Direct steam supply from centralized boiler

Electrical power: 18Kw, 3 phase, 440 V 50Hz AC supply.

High pressure High vacuum model

Water ring type vacuum pump is provided for pre & post vacuum facility.

Automatic water feed pump is provided for boiler with auto cut off device.
