Table Top Autoclave

Product Description

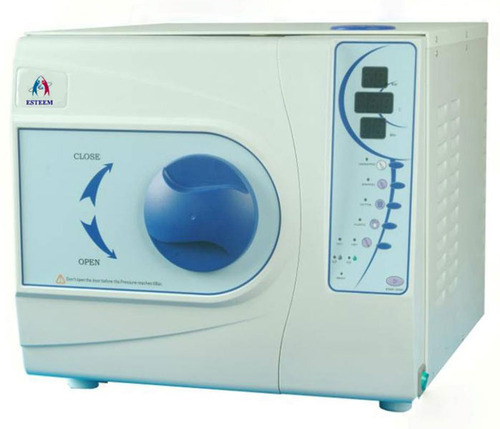

ESTEEM TABLE TOP AUTOCLAVE:

Stainless steel seamless chamber and epoxy coated chamber cover for more safety. Sterilize cycle,

dry timer and indicator lamps display on panel which allows the operator to visibly acknowledge

the phase. Safety locking mechanism (patent no. 112434) that prevents opening while the

autoclave is under pressure. Steam release valve will exclude cool air and extra steam

CONSTRUCTION DETAILS::

Esteem Table Top Autoclave have 30 liters capacity and Sterilizer type is table top sterilizer.

Table top autoclave have rectangular chamber. The Chamber is made up of SS 316.Door type is

Hinged door with silicon elastomeric rubber gasket. to withstand temperature up to 140C. .

Chamber would have Stress & Fatigue analysis reports for material & Construction of the

pressure vessel. Sterilizer would have inbuilt steam generator with warranty of 5 years on

heating elements. The steam generator design would be with integrated energy storing system

for building up power for sterilization loads in short time.

TEMPREATURE & PRESSURE:

Working pressure is 2.2 bars and design pressure up to 3.8 bars.

Following cycles should be available:

1. 134 c wrapped & unwrapped

2. 121c wrapped & unwrapped

3. 134c flash/rapid open instrument cycle

4. 134c textile

5. 134c prion

Pressure Equipment

Directive (PED) & EN 13445 norms

CONTROL:

The control system is microprocessor based PLC system specially designed for sterilization

applications. The control system would have CPU processor. Digital input/output controls,

analog measuring inputs & COM ports for printer. Inbuilt printer for providing the verifiable

specification details for each cycle.

FEATURES::

Types of Cycles Process: Table Top Sterilizers would be equipped with B-process as per

latest International standards

Chamber would be equipped with electrically heated jacket for preheating on standby

mode A disposable air filter would be provided for filtering the atmospheric air before

entering inside the chamber. The filter separation efficiency should be higher than

99.998% for particle size less than 0.3m

ISO & CE Certified

ALARMS:

Automatic process checking & failure correction would be possible by the control system.

Temperature & pressure sensor failure,

Phase time- out,

Doors not properly closed,

Power failure (less than 10 sec should be ignored),

Low water level etc.

All the alarms would be audio- visual

Accessories:

Rack with at least 3 levels & suitable size instrument trays would be the part of the supply

for every sterilizer.

A SS 304 multiple level (minimum 3 levels) storage rack for storing 16" SS drums
