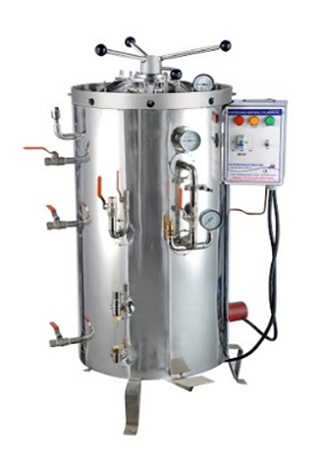

Vertical Autocalve

Product Description

ESTEEM VERTIICAL AUTOCLAVE ((ESTA--1106 A))::--

CONSTRUCTION:

The unit comprises of steam jacket electrically heated inner lid made of stainless steel work on 3-phase 440A/C 50HZ

supply fitted with automatic pressure control switch safety valve etc Chamber:- The chamber is made of 304 SS. Pressure

gauge, water outlet valve and air inlet valve, SS steam condenser, tube with SS eject valve. Single Door high pressure

sterilizer with triple walled, steam jacket and separate boiler Steam Generator: - The steam generator is made out of SS

heavy gauge fitted with pressure gauge and water draining valve. Spring loaded safety valves and automatic vacuum

breaker for jacket. Removable plug screen for chamber drain. Display panel will be fitted with on/off switch and with

indicators for pressure gauge, safety valve, release valve, indicating lights to show when the pressure control is cutting off

current to heater.

Outer cover:- The outer cover is made out of SS duly insulated with high density mineral wool from the inner chamber

and fitted with stable legs. Principle:- The steam generates from the jacket and gets condensed by the help of the eject

valve which goes through condensing tube the dry steam gets into the chamber to penetrate into the packs contained

in the chamber.

Our dry vertical autoclaves are triple walled units. Outer body of our autoclave is constructed out of thick gauge stainless

steel sheet of SS-304 grade. The inner chamber is also made of heavy gauge stainless steel sheet of SS-316 grade. The

middle wall is also constructed from the strong and sturdy stainless steel sheet of ss-304 grade s stainless steel sheet.

These are steam stocking models connected with a three way valve to control the sterilization cycle inside the autoclave.

Safety lock for door pressure lock safety device will be provided. The output material will be completely dry.

Our autoclaves are air insulated from inside, however we may incorporate mineral glass wool insulation if the customer

desires so. The strong lid constructed out of thick stainless steel plate has a double safety radial locking arrangement,

which ensures an easy and smooth opening and closing operation for all our autoclaves. Our deluxe vertical

autoclaves are ideally suited for Bio-Tech laboratories, hospitals and research labs where safety is the first

Priority of the users, since it is equipped with a double safety steam release valve. At the same time we test all our

autoclaves for up to 2.5 times the standard working pressure to ensure maximum safety and protection from any

unfortunate incident. All our triple walled vertical autoclaves are supplied complete with pressure gauge, pressure

release valve and stainless steel basket as a standard feature. Provided with low water cut off facility

HEATING:

The heating process in our triple walled vertical autoclave is done through specially designed water heaters of suitable

wattage to ensure optimum sterilization time in every sterilization cycle.

Provided with ISI marked electric heaters. Pressure is controlled by pressure stat and temperature indicator is also provided. The pressure is controlled from 1.2 kg. to 2.00kg./cm2.Provided with double safety valve, Water inlet& outlet valves, pressure release valve S.S wire basket. The panel is provided with controls & indicators, 60 minute timer.

WORKING TEMPERATURE:

As per the international standards and guidelines our triple walled vertical autoclave have a working temperature of 121Degc. ,however for specific requirements our autoclaves can be upgraded to be used for up to 138Deg c.

WORKING PRESSURE:

Working pressure for our standard dry sterilization model vertical autoclave is 15 psi, however this can be upgraded to be used for higher pressures of up to 25 psi.

PRESSURE RANGE:

The normal pressure range of our autoclave is 5 psi to 30 psi

PRESSURE CONTROL:

The pressure inside our vertical autoclave is controlled through a semi automatic electro mechanical device called piezostat, which controls the pressure inside the chamber and cuts of the current from the heater whenever the pressure exceeds the set pressure value of the autoclave, thus making it very safe and energy efficient.

Power Supply: Power input to be 220-240 volts, 50 Hz as appropriate and fitted with plug compatible with local sockets

Specifications:-

Technical

Fully automatic vertical autoclave, suitable for sterilization under working steam pressure up to 15 Psi or more and temperature of 121 C.

Design: unit made of SS 304 Chamber, approx. inner dimensions 16 to 25(diameter x depth) lid made of heavy gauge lid, die pressed S.S 304 with pressure gauge ,steam release valve & necessary, Safety valves, with foot lifting arrangement to open lid.

Capacity:- 70 to 80 lit

Display: Time and temperature LCD display.

Alarm: Low water level alarm and cut off/Sensor open alarm.

Accessories: Perforated carriers made up of SS 304 (3-4 Nos.)

Power Supply: 220/230volts AC-50 Hz or suitable power supply
