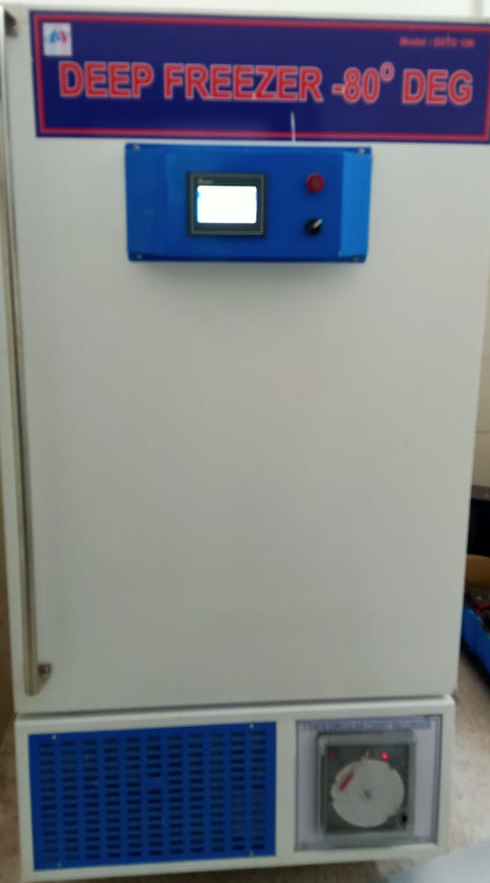

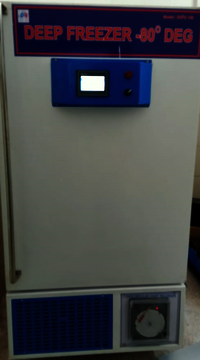

Esteem -80 °C Deep Freezer

Product Description

ESTEEM ULTRA LOW DEEP FREEZER::

ESTEEM is providing Deep Freezer with different capacities, non-frost and canned door locked. Electronic

controls and digital alarm Equipment designed for Research Laboratories. Galvanized steel sheet body with

epoxy paint and vacuumed polyurethane foam panels, outer double door with locking facility

Chest type available Horizontal/Vertical Version Inner S.S. door to avoid temperature loss. Upright freezer

having rugged construction with heavy gauge, cold-rolled steel exterior and powder coat paint finish,

ergonomic with lockable door handle. Easy to remove washable filter for protection from dust on the

condenser and increasing refrigeration performance

Five or more interior compartment doors to reduce cold air loss

Capacity:-500-800 Liters

Temperature range:

Deep freezer: -45C to -86 C or better

Temperature control:

Thermostat/Digital Controller.

MP (Micro) Digital Temperature Controller cum indicator.

Temperature receiving time: 4 Hours.

Instructions: To be stored in A.C. Rooms & Use of AVS/Servo Controlled Voltage Stabilizer is strongly

recommended.

Construction: Inner Chamber is made of S.S. sheets and is insulated with high density expanded

polyurethane (PUF) insulation for minimum temperature loss.

Salient features:

Audio/Visual alarm provided for rise in temperature.

CFC & HCFC Free.

Low noise level 65 db.

Easy to use microprocessor control panel

Castor wheels for case of mobility.

Safety- backup systems for additional sample protection in the event of power or mechanical failure

Preferably 4-5 drawers with individual freezing circuits

Temperature control, Alarm system, Remote Alarm Relay, Refrigeration system.

Suitable to work on 208- 230V/60Hz, AC supply.

Energy Consumption: Less than 500 watt/ hr

Vacuum relief port/ pressure equalization port for easy access after door openings

Stainless steel sturdy shelving to support full product load with 4 or more shelves.

5 (12.7 cm) foamed-in-place polyurethane insulation/ VIP insulation technology.

Low voltage surge protection power management system

Vacuum relief port .

Voltage stabilizer.

Easy to remove air-filter .

Minimum 3 star 2.0 ton split AC for optimal operation during the summer season with voltage

stabilizer
