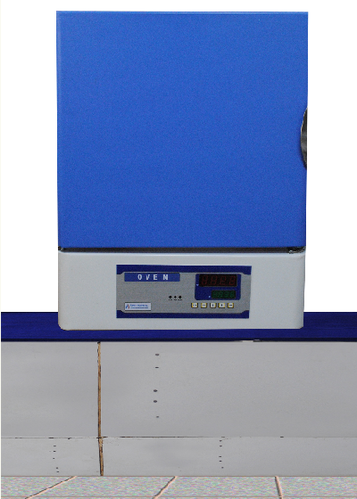

Hot Air Oven

Hot Air Oven
Hot Air Oven
Product Code : ESTO- 111
Brand Name : Esteem
Product Description

There are several other companies active in this industry and we are the leading among them for manufacturing and exporting an excellent stock of Hot Air Oven. Made from high grade stainless steel, this oven is widely used in laboratories and hospitals for safe storage of equipments and other sample protected from any possible contamination. We offer different models and technical specifications in our range of Hot Air Oven. In compliance with international quality standards, this oven is properly insulated for avoiding heat losses.

Features:

  • Removable shelves
  • Insulated door
  • Uniform temperature

ESTEEM HOT AIR OVEN:

Construction:

Ovens are sturdy, with double walled construction. Inner Chamber made of STAINLESS STEEL sheet. The gap between the walls is filled up with special grade glass wool for proper insulation to avoid heat losses. Inner chamber has ribs For placing the shelves at convenient levels. Supplied with 2 or 3 removable shelves. It is fitted with heavy hinges with a ball Catcher, spring loaded door closing device. Door is duly insulated.



Elements:

Heating elements are made of high quality nickel/chrome plated nichrome wire which are put inside beads and placed at the bottom and in both the side ribs for Uniform temperature all over the work space.



Temperature Control:

Temperature is controlled by imported capillary type thermostat from 50°C to 250°C ± 1°C. Temperature control knob is graduated in centigrade degrees. Ovens are supplied without thermometer.



OVER Temperature PROTECTION:

Heating will be switched off at 10C above the set temperature.



Ventilation & CONTROL:

Forced Air Circulation

Continuous adjustment of preheated fresh air admixture.

PID microprocessor controller with integrated auto diagnostic system with fault indication

Solid state switching unit.

Digital display of all set parameters



Casing: stainless steel



Control Panel:

Comprising of switch to ON/OFF the power, switch to select high or low rates of heating, thermostat control knob and indicators for mains and thermostats. Supplied with cord and plug. Suitable to operate on 220 volts, 1 ph, 50 Hz, AC supply.
