BOD Incubator

BOD Incubator
BOD Incubator
Product Code : ESTB- 100
Brand Name : Esteem
Product Description

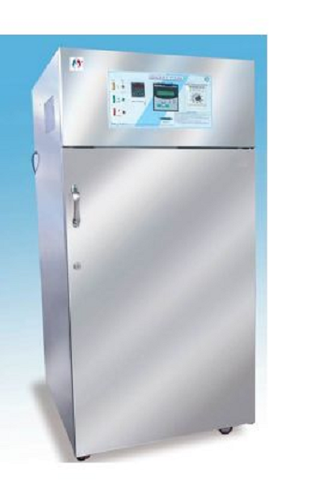

ESTEEM BOD  INCUBATOR:



Most versatile and highly reliable low temperature incubator, to make Biochemical Oxygen Demand determinations and for preservation of vaccines, insulin, lever extracts, chemicals etc.



Construction

Robust Construction. Outer cabinet is made of M.S. Sheet, duly pre treated & finished with epoxy powder coated paint for lasting finish. Inner chamber is made of highly polished stainless steel. It has provision for allowing wide range of shelf positions & spacing. SS trays are also provided. The outer chamber may also be provided of mat finished Stainless Steel. Chamber is duly insulated to minimize heat loss. Two doors are provided. Outer door is insulated and is fitted with magnetic tape for air tight closing for no temperature loss. Door is provided with lock and key. Inner door is made of transparent acrylic/ glass for inspecting the specimens inside chamber, without opening the door   and with minimum temperature loss.



 Temperature Control

The heart of the ESTEEM B.O.D. Incubator is the excellent and reliable solid state temperature controller cum indicator digital display, range from 5°C to 60°C ± 0.5°C. Hermetically sealed, Dan Foss / Emerson Copeland    high performance compressor works efficiently to lower the inside chamber temperature. Heating elements are placed in the path of moving air duly insulated from the body. Cooling coils also lie in the air circulation path. Air is circulated by a double shaft self-cooled, blower to keep the uniform temp. Through out the inner chamber. A safety thermostat is provided, which switches off the heaters in the event of failure of the normal temp. control system to protect the specimens from excessive heat. A highly insulated CFC free PUF System is provided to avoid loss of energy.



 Control Panel

All controls and circuitry are housed at the top of the incubator and therefore protected from spillage. Separate indicator lamps for mains, heating and cooling are fitted. Temperature setting is by finger touch fine and coarse for the user to set any desired temp. A Voltmeter is provided on the panel to read the incoming voltage. Fitted with automatic built in stabilizer.



Illumination:

Our units are provided with door operated illumination system comprising of fluorescent lights



Front Panel

Front panel of our units comprises of on/off switches heating, cooling and mains indicator lamps, temperature controllers and voltmeters



Temperature Control



    Temperature Sensitivity

    Spatial Deviation In Temperature

    Readability

    Temperature range

    Temperature Sensor

    Temperature Controller

    Display

    Adjustable alarm limits
